Commission the reversing conveyor starter

Run a transfer conveyor forward and in reverse. Two interlocked contactors, a safety chain that powers the PLC outputs, a dwell time before reversing and a hardwired TRIP lamp.

Free with a free account. Runs in your browser.

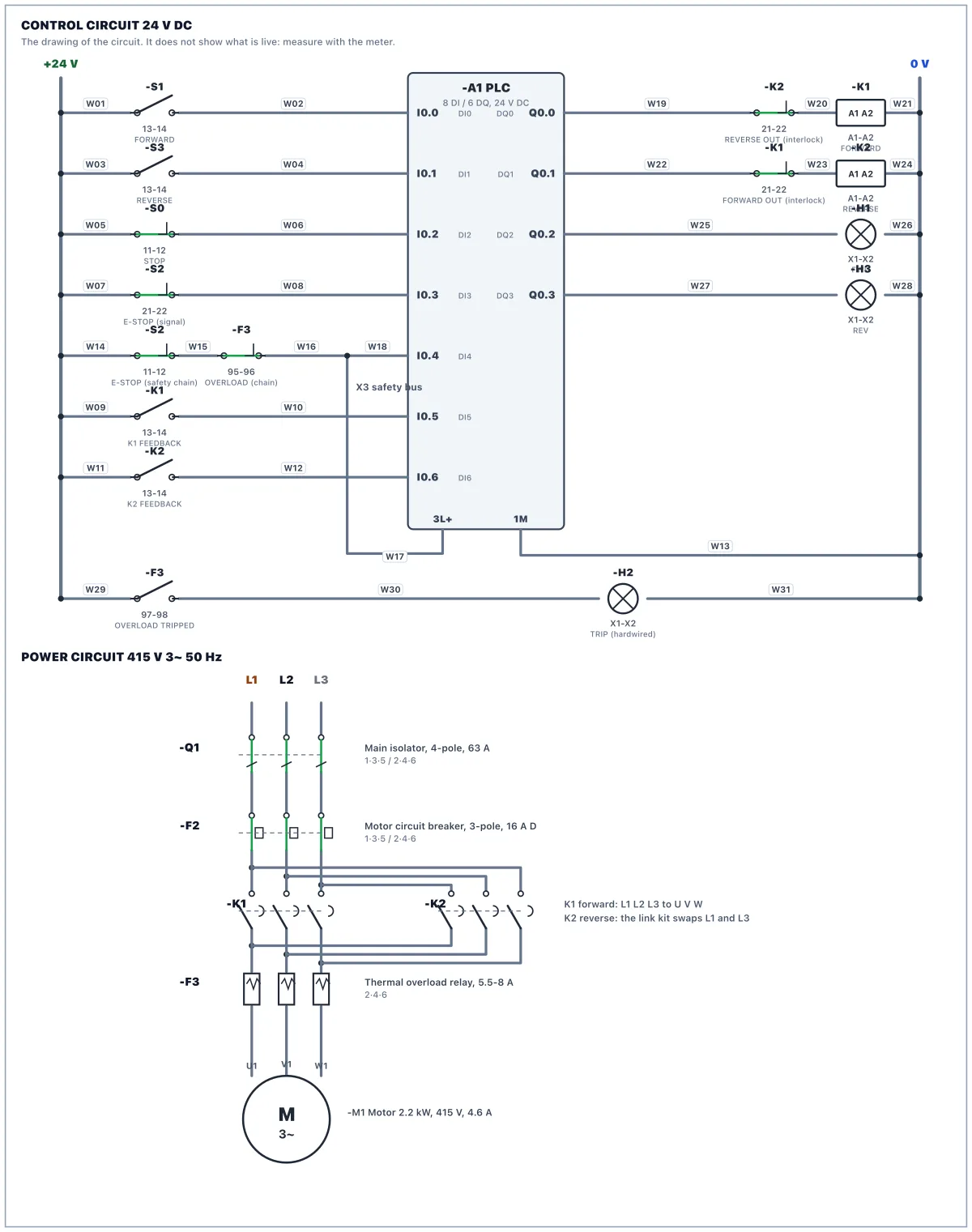

The circuit diagram of the panel, as drawn in the lab: Commission the reversing conveyor starter

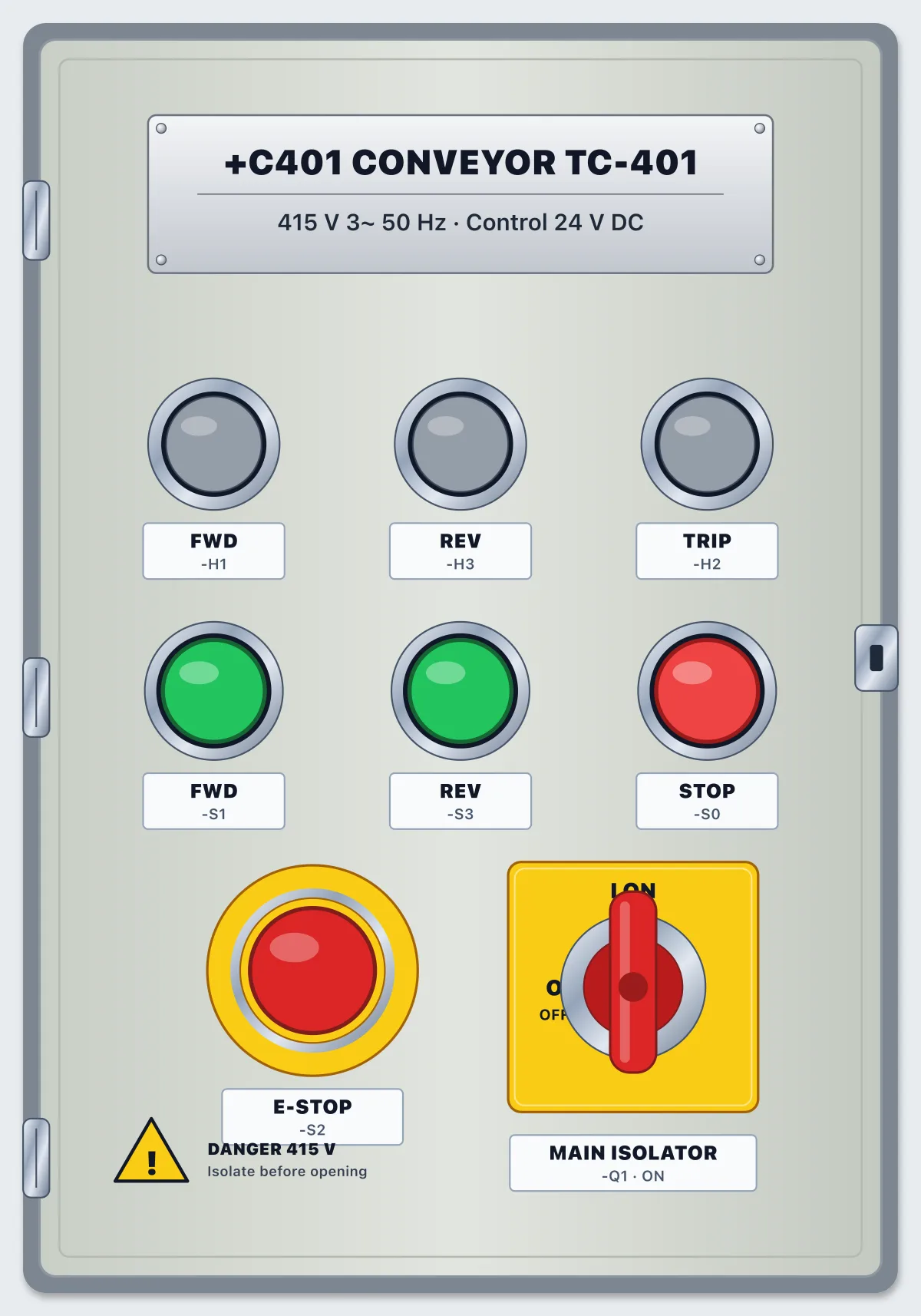

The closed cabinet door with its lamps, buttons and isolator handle, as drawn in the lab: Commission the reversing conveyor starter

What you will build

Work order WO-PS-401. Your site team, Commission the reversing conveyor starter.

Deccan Logistics, Hosur. Transfer conveyor TC-401 moves parcels from the sorter to the despatch bays, and the belt must run both ways to clear a jam. Its motor is 2.2 kW, 415 V, 4.6 A. The starter panel +C401 has arrived with the power circuit and the 24 V supply wired. A reversing link kit, hidden in the duct, swaps two phases for K2. The control wiring is yours.

What you will learn

  • Lock out and prove dead, live then dead then live
  • Land 31 control conductors from a wiring schedule
  • Read the supplied PLC program and match it to your wiring
  • Restore power safely, test, and run the FAT

How it goes

  1. Lock out the panel at the main isolator Q1: switch OFF, apply your lock and your tag.
  2. Prove it dead with the meter, live-dead-live.
  3. Wire the 31 conductors of the wiring schedule. The PLC outputs get their 24 V (3L+) through the safety chain: E-STOP 11-12, then the overload's 95-96, then the safety bus X3. When the E-STOP is pressed or the overload trips, every output loses its power at once. The TRIP lamp is wired from F3 97-98 and does not use a PLC output.
  4. K1 and K2 must never be in together: that shorts two phases through the reversing kit. Each coil circuit goes through the other contactor's NC contact (21-22), and the contactors are also interlocked mechanically.
  5. Read the supplied PLC program. It lets a direction start only when the other is off and both contactors have been out for 2 s, so the motor is never plugged.
  6. Restore power: tick the checklist, remove your tag and lock, switch Q1 ON, put the PLC in RUN.
  7. Test: FWD, STOP, REV after the dwell, REV pressed while running forward, the E-STOP and an overload trip. Then run the FAT.

Parts in the panel

  • Main isolator, 4-pole, 63 A

    Switches all three phases and neutral. The incoming cable lands on 1, 3, 5, 7: those terminals stay live when it is OFF.

  • MCB 2-pole, 6 A, C curve: control supply

    Feeds the 24 V power supply with 230 V (L1 and N).

  • MCB 3-pole, 16 A, D curve: motor circuit

    Protects the motor circuit against short circuits. The overload relay protects the motor against overload.

  • Contactor FORWARD 3-pole, 9 A AC-3, coil 24 V DC, 1 NO + 1 NC aux

    Runs the belt forward. Mechanically interlocked with K2. Its NC 21-22 is in K2's coil circuit and its NO 13-14 tells the PLC it pulled in.

  • Contactor REVERSE 3-pole, 9 A AC-3, coil 24 V DC, 1 NO + 1 NC aux

    Runs the belt in reverse: the reversing link kit feeds it with L1 and L3 swapped. Mechanically interlocked with K1. Its NC 21-22 is in K1's coil circuit.

  • Thermal overload relay, 5.5-8 A

    Trips on sustained overcurrent. 95-96 (NC) opens and 97-98 (NO) closes. Blue button: reset.

  • Power supply 230 V AC to 24 V DC, 5 A

    Its 0 V (βˆ’) is bonded to PE at the factory, so 0 V and earth are the same potential.

  • PLC: compact CPU, 8 DI / 6 DQ, 24 V DC

    Inputs I0.0-I0.7 are PNP: 24 V on the terminal turns the input on, with 1M at 0 V. Outputs Q0.0-Q0.5 source 24 V from 3L+, which here comes through the safety chain.

  • Terminal strip X2: 24 V DC distribution

    Positions 1-6 are bridged +24 V, 7-12 are bridged 0 V. Top and bottom of each position are the same point.

  • Terminal strip X3: safety bus, 3 terminals bridged

    The 24 V that has passed the E-STOP and the overload contact. One goes to the outputs' 3L+, one to the PLC input that watches it.

  • Terminal strip X1: motor

    The motor cable from the plant lands here.

  • PE bar

    Protective earth, bonded to the incoming supply's earth.

  • Push button FORWARD, green, 1 NO

  • Push button REVERSE, green, 1 NO

  • Push button STOP, red, 1 NC

  • Emergency stop, 2 NC, twist to release

    Contact 11-12 is in the safety chain that powers the outputs; 21-22 tells the PLC.

  • Pilot lamp green 24 V: RUNNING FORWARD

  • Pilot lamp green 24 V: RUNNING IN REVERSE

  • Pilot lamp amber 24 V: OVERLOAD TRIPPED (hardwired)

  • Motor 3-phase 2.2 kW, 415 V, 4.6 A, driving transfer conveyor TC-401
