Revit MEP: Electrical BIM, HVAC, Plumbing and Documentation
Free Revit MEP course for beginners: model electrical, HVAC and plumbing, circuit panels, make panel schedules and sheets. The certificate is optional and paid.
Inside the course
From the lessons
Starting an MEP Project and the Template
Electric Rob
Building Envelope, Spaces and Zones
Learning With Rich
Electrical Families: Sockets, Panels and Isolators
SL - Engineering Solutions
Panel Schedules and Load Calculations
SL - Engineering Solutions
Low Voltage: Data, Telephone, CCTV and Access Control
SL - Engineering Solutions
Plumbing, Piping and Fire Protection
Learning With Rich
Lesson frames belong to the creators named in the Credits below and are shown from YouTube.
What you will learn
Set up a Revit MEP project from a template, link and coordinate an architectural model, place spaces and zones, model HVAC, plumbing and fire-protection systems, create electrical families, place and circuit sockets, lighting, panels and switchboards, produce panel schedules and load calculations, route cable trays and draw one-line diagrams, document with views, tags, legends, schedules and sheets, print sets, and collaborate with worksets.
- Start a Revit MEP project and link the architectural model correctly
- Place spaces, zones, air terminals and HVAC systems
- Build electrical families and circuit sockets, lighting and panels
- Produce panel schedules, load calculations and one-line diagrams
- Model cable trays, plumbing, piping and fire protection
- Document with sheets, tags, legends and printing, and share work with worksets
For you
Taking Revit MEP: Electrical BIM, HVAC, Plumbing and Documentation from the United States
- Free in the United States, as everywhere, and self-paced: lessons, notes and the final assessment are open at any hour, so your time zone and shift pattern do not matter.
- The optional certificate for learners in the United States is a one-off US$23.99. What you get for it
- Plants across the Americas most often run Allen-Bradley, Siemens and Inductive Automation; each has its own free course to take next.
- See automation and engineering jobs in the United States, and what the industry looks like in Houston, Detroit and Chicago.
- EDWartens also has a regional site for the United States, for classroom training and local support: edwartens.com/us.
The course project 路 about 20 hours
Hospital surgical floor in Revit MEP: panels, IPS, fire alarm and a clash report
Model and document the electrical services for one floor of a 300-bed hospital in Nairobi: normal, essential and UPS lighting and power, isolated power for four operating theatres and an ICU, the fire alarm interface and the cable containment, coordinated against the linked mechanical and plumbing models. You deliver the Revit model, your own panel schedules and load list, the sheet set and your own clash report. The sample pack shows what an MEP consultant issues at coordination.
Sample document pack, 8 documents, filled in for the scenario
- URSBIM Execution Plan Extracts for the Electrical Discipline: Level 3
- ProcedureFamily, Parameter and Worksharing Standard: Electrical Discipline
- Drawing listDrawing and Model List: Level 3 Electrical
- RegisterPanel Schedules: DB-L3-E1 (complete) and IPS-OT1 (complete)
- Load listElectrical Load List: Level 3
- Single lineSingle Line Diagram: Level 3 Electrical (sheet E-307, described)
- ReportClash Detection Report: Electrical against Mechanical and Plumbing, Level 3
- Change noticeDesign Change Notice: Two Additional ICU Beds, Level 3
Read inside the course and download as a workbook. The project is optional practice, marked when you submit it; the certificate needs only the modules and the final assessment.
Course content
14 modules 路 75 lessons 路 29h 11m
In order, at whatever pace suits you. Each module ends with a practice task that builds on the last.
- 01Starting an MEP Project and the Template5 lessons2h 19m
- 02Linking the Architectural Model, Levels, Grids and Scope Boxes9 lessons1h 25m
- 03Building Envelope, Spaces and Zones4 lessons1h 18m
- 04HVAC: Air Terminals, Systems and Schedules5 lessons1h 40m
- 05Electrical Families: Sockets, Panels and Isolators5 lessons4h 53m
- 06Panels, Switchboards, Circuits and Feed-throughs10 lessons4h 4m
- 07Panel Schedules and Load Calculations4 lessons1h 11m
- 08Lighting Plans and Fixtures4 lessons1h 46m
Requirements
- Who it is for
- Beginner. No Revit experience needed; AutoCAD helps but is not required.
- Software
- Autodesk Revit (education licence or trial) What to download, and how
- Hardware
- None required.
Software you need
What to download, where from, what it costs and how to install it. Every link goes to the maker's own site, never a mirror.
Required
- 01Free trial: 30 days
Revit
Autodesk
- Runs on
- Windows 11 64-bit
- Account
- A free Autodesk account
The Revit trial lasts 30 days and cannot be extended; if you were not asked for a payment method it simply expires. Students and educators can get Revit free for a year through an Autodesk Education plan, renewable while eligible.
Steps
- 1.Open the Revit free trial page on autodesk.com and select the trial download.
- 2.Sign in to your Autodesk account, or create one.
- 3.Choose the version and language, then download the installer.
- 4.Run the installer on a Windows 11 PC.
- 5.Start Revit and sign in with the same Autodesk account.
- Revit is Windows only. On a Mac you need a Windows virtual machine.
- Students and teachers should use the Autodesk Education route for a year of access.
Official download pageautodesk.comAlternatives
- Autodesk Education plan: Free one-year Revit access for eligible students and educators.
Checked against each maker's own page on 27 September 2026. Trial lengths and editions change; the maker's page is the final word.
Revit MEP: Electrical BIM, HVAC, Plumbing and Documentation at a glance
Revit MEP: Electrical BIM, HVAC, Plumbing and Documentation is a free, self-paced online course from EDWartens for engineering students and design engineers. It has 14 modules and 29h 11m of video lessons by Electric Rob, SL - Engineering Solutions, Learning With Rich, with written notes and worked problems, a practical project with a document pack and a 15-question final assessment (pass mark 60%). Learning is free with an account; an optional certificate with a public verification code is issued when you pass. Last updated 27 September 2026.
All course factsHide course facts
- Price
- Free, for good. No trial, no card. The only paid item is the optional certificate, a small one-off fee.
- Who it is for
- Engineering students and design engineers
- Format
- 14 self-paced modules, 29h 11m of video, written notes, a practice task per module and one final assessment.
- Level
- Beginner. Beginner. No Revit experience needed; AutoCAD helps but is not required.
- Brand
- Autodesk
- Software
- Autodesk Revit (education licence or trial)
- Hardware
- None required.
- Certificate
- Optional EDWartens Certificate of Completion, verifiable by code, for a small one-off fee shown on edwartens.com/certificate. Not a vendor credential.
- Video lessons by
- Electric Rob, SL - Engineering Solutions, Learning With Rich (independent creators, credited below)
- Language
- English
- Last updated
- 27 September 2026

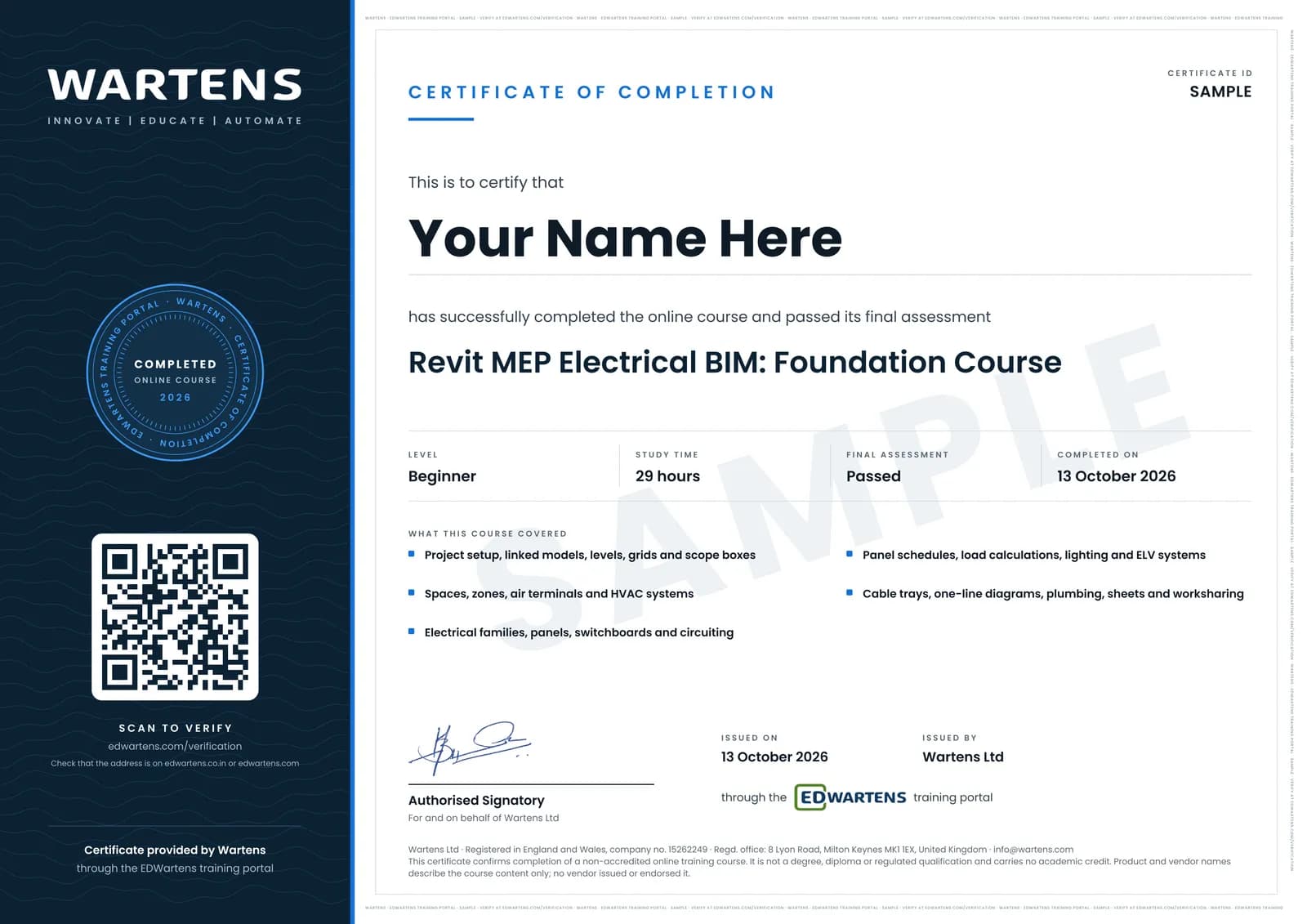

A shareable EDWartens certificate
